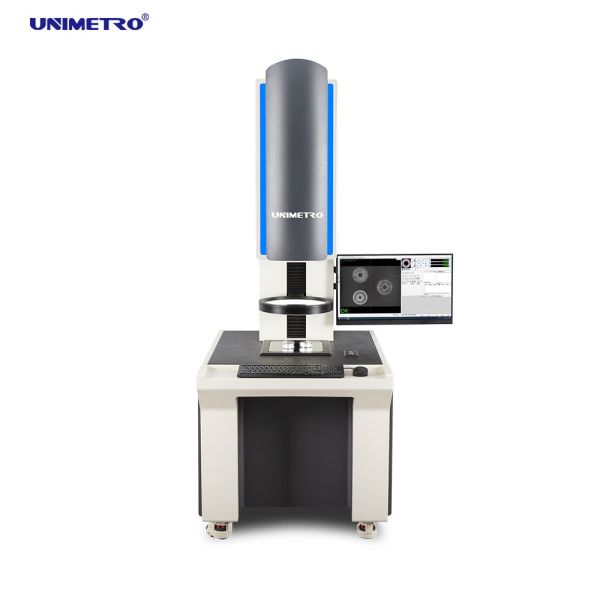

Highly Image Dimension Measurement System

Brand Name : UNIMETRO

Model Number : AVANT 190

Place of Origin : China Guangdong

MOQ : 1

Payment Terms : T/T

Supply Ability : 30 per month

Delivery Time : 20 work days

Packaging Details : Wooden Case

Certification : CE,ISO

Produce Name : Large Size Large FOV Vision Measurement Machine

Camera : 20MP HD color digital camera

Zoom Lens : Single telecentric lens

FOV : 190*130mm

Repeatability : 3um

Accuracy : 3um

Resolution : 0.1um

Dimension : 812*964*2076mm

Price : Discussible

Contact Now

Large Size Large FOV Vision Measurement Machine One Touch Measuring

Highly Image Dimension Measurement System for Large Size Products AVANT 190 Pro One Touch Measurin

AVANT 190 pro Large Size Large FOV Vision Measurement Machine is a new type of image measurement technology
from UNIMETRO. It is different from the traditional 2D vision measurement machine, it no longer needs a linear
scale displacement sensor as a precision standard, and it does not need to enlarge the product image through a
large focal length lens to ensure measurement accuracy.
Large FOV Vision Measurement Machine Characteristic
◆ Solving the problems of traditional measuring machine:
Traditional size measuring instruments such as projectors, tool microscopes, vision measuring instruments, profile measuring instruments, vernier calipers, etc., may face high operational difficulty, complex focusing process, time-consuming moving coordinate table, human error, long batch measurement time, and data. Complicated
statistical management and other issues.
◆ Outstanding features
Fast & efficient:
-The product can be placed arbitrarily without additional fixtures to fix and position.
- Fast measurement, up to 512 locations can be measured at the same time.
-To make batch measurement more efficient, batch measurement can be carried out quickly and accurately inCNC mode.

◆ Accurate & consistent:

-With just one button, anyone can easily obtain accurate and consistent measurement results.
-Software auto focus, no deviation caused by focus adjustment.
-Automatically identify the measurement location, obtain uniform and stable measurement results.
◆ Easy to operate:
-Anyone can get started quickly, saving manual training time and improving work efficiency
-Simple operation interface, the operator can quickly find the corresponding function and measure it.
-Virtual lines and virtual points can be created to meet more measurement requirements.
Large FOV Vision Measurement Machine Parameter:
Model Number
A190
Image sensor
2000W HD color digital camera
External display
24’
Light receiving lens
Single Telecentric lens
Drop shot system
Single zone ring directional lighting (white light)
Transmission system
Parallel transmitted illumination (white light)
Broad Vision(mm)
195*130mm
Repeatability
±3(Coordinate table not moving)
Measurement Software
INS/F
Display resolution
0.1um
Z-direction electric coordinate table
100mm(Moving range)
Dimension
812*964*2076mm
Weight
530KG
Power Supply
110-230VAC,50/60HZ

UNIMETRO Company Information
Highly Image Dimension Measurement System
Highly Image Dimension Measurement System
FAQ:
Q: Are you a factory or trading company ?
A: We are a factory and giving you the quickest reply in 24 hours.

Q: What's your company mainly in?
A: We are mainly produce Vision measuring machine,Coordinate measuring machine ,CMM&VMM fixturesetc.
Q: How to Choose the Appropriate Specification?
A: As long as you tell us variety and size of product to be measured, our professional team would advise you of measuring
instrument of suitable specifications.
Q: Do you accept customized service?
A: Be sure! We can provide not only typical machines, but also the machines customized to customer's needs.
Q: What is your warranty period?
A: Our product warranty period is 1 year. Our product quality is very stable, and we have improved a lot on some breakable parts. You can rest assured of our product quality.
