Tool Inspection System with 806060mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine

Name: Tool Inspection System with 806060mm Measurement Range 00001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine
Brand: UNIMETRO
Price: 1 USD

Cheap Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine for sale

Model Number : Ranger 600

Brand Name : UNIMETRO

Place of Origin : Guangdong, China

MOQ : 1

Measurement range : 80*60*60mm

Max tool diameter : 50mm

Max tool length : 300mm

Working distance : 90mm

Lens system : 0.7X ~ 4.5X Zoom lens

Linear scale resolution : 0.0001mm

Input file format : DXF file

Output file format : EXCEL, DXF

X axis travel : 80mm

Y axis travel : 60mm

Z axis range : 60mm

Camera resolution : 2M pixel HD camera/5M pixel HD camera (Optional)

Magnification range : 12.6X~79.2X/25.2X~158.4X (Optional)

Field of view : 27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm (Optional)

Measuring accuracy : X~Y,(2.5+L/100)µm, L is the measured length

Contact Now

Tool Inspection System with 80*60*60mm Measurement Range 0.0001mm Linear Scale Resolution and DXF File Input Vision Measuring Machine

Product Application

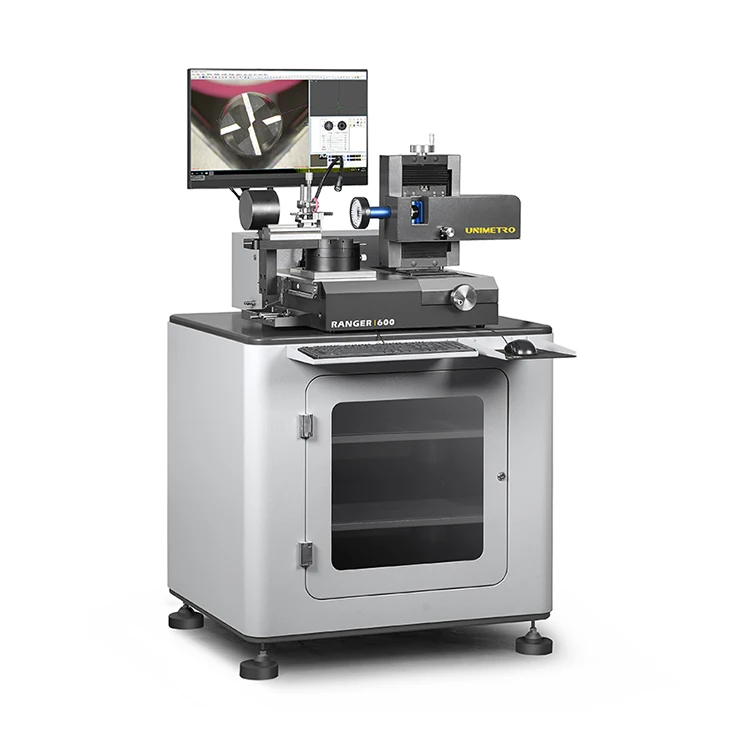

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under Flexible illuminating system. Thanks to the compact design and great stability, The RANGER600 can be employed in the metrology room, receiving inspection, or directly in production. The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, which makes it the best instrument for all types of metal cutting tools, starting from fast checking of single criteria, such as the outer contour or angles, to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.

Advanced Design

--Ergonomic design and solid construction.
--HD image capturing and display combination, also microscope magnification level is optional.
--Stable and accurate V block for easy tools holding and alignment.
--Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
--High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
--Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
--SMARTOOL measuring software offers specific measuring function for cutting tools.
--Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
--Measuring result fast output to EXCEL file report or CAD file.
--ALL-IN-ONE PC system makes the machine more stable.

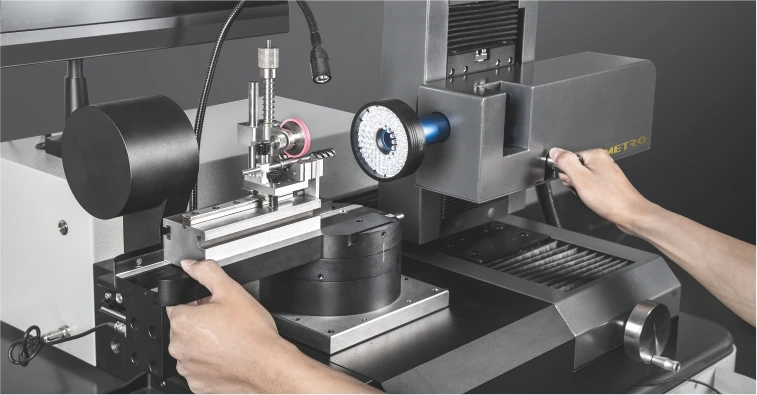

Multiple Angles

For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc. If other angle location should be required, users can also use the accurate encoder which is embedded in the rotary table to obtain. The angle reading is display in the software.

0 degree

45 degrees

90 degrees

Leading cutting tools measuring solution

The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, it is
easy and intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in grinding business.

Parameters
X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera(Optionsl)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X(Optional)
Field of view	2720mm~4.33.3mm/13.510mm~2.31.6mm(Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm,L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination	8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable.
Input format	DXF files
Output format	EXCEL,DXF

Free angle auxiliary light

A dimmable additional light is available on a flexible arm. Which helps the users to get a local enhance image.

Tools holder

A multiple section tools holder is embedded at the side of the machine. Users can hold all the tools in order for preparation to avoid confusion.

Base table

Solid standing work station with practical and open-view storage space for storage of materials and tools.

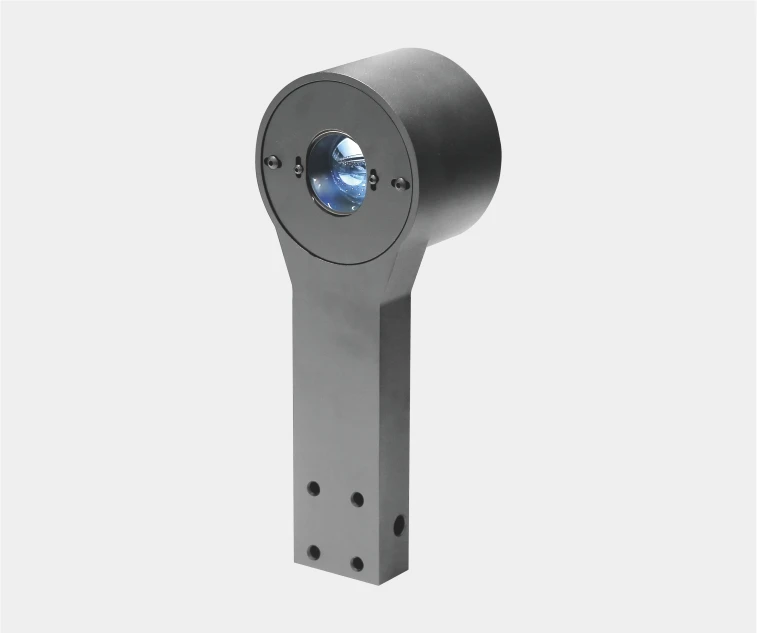

Contour light module

The RANGER600 is including a parallel light path contour LED light module, which is movable along the X axis direction, offers the best image and sharp edge of the object view to the user when measuring the contour of the tool.

Leading Features

Easy operation

High resolution image display and graphical operation interface. All function keys and control panel are displayed on the software window.

Dynamic Real Time curve view

The software offers real time edge detecting curve view, makes the edge analyse and measuring more intuitive and clear. Users are able to switch to the curve view mode at any time during measuring process.

Fast angle measuring with retical

The reticle displayed in the image area of the SMARTOOL software is freely rotatable and able to display angles. Users can achieve fast angle measuring easily by using the retical for edge comparison.

CAD comparison

The SMARTOOL measuring software is supporting CAD comparison function. Users can directly input the CAD drawing of the tool to the software as reference, and compare the real image to the drawing to evaluate the geometries of the cutting tools.

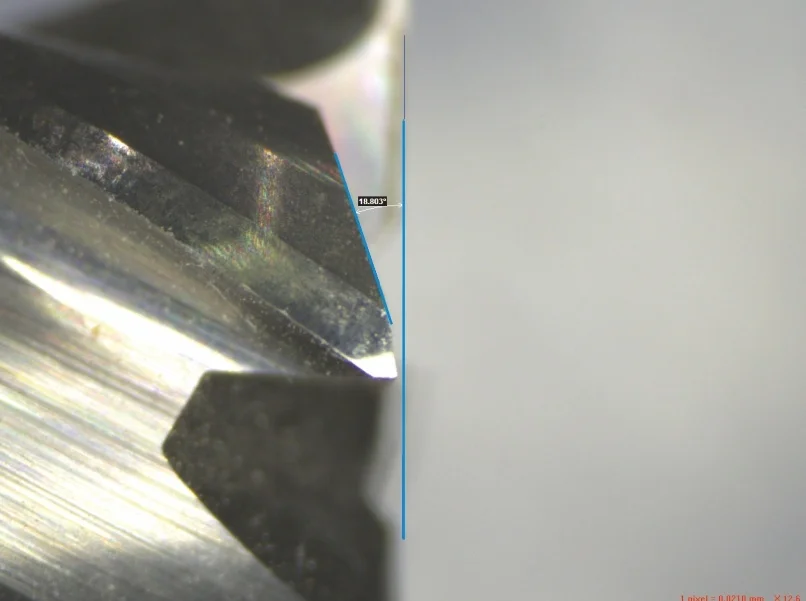

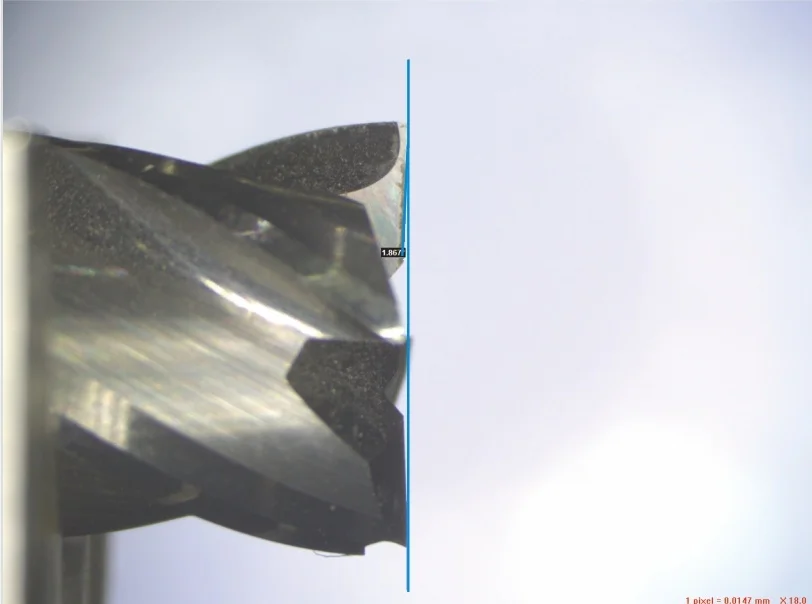

Measuring Capability

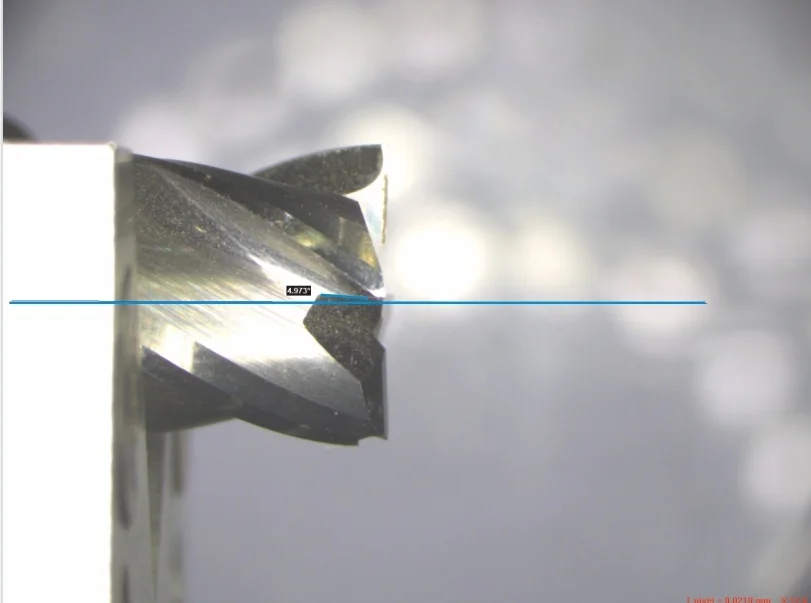

Helix Angle

Axial Front Angle

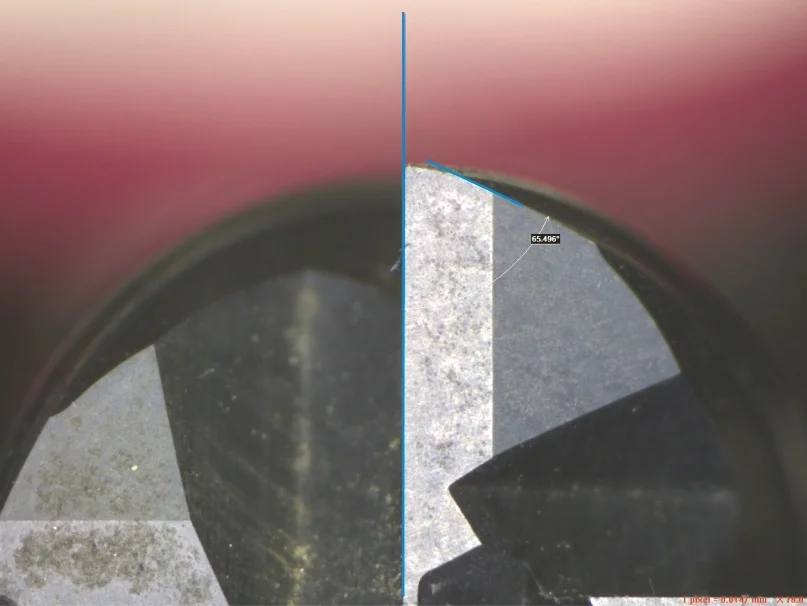

First Rear Angle

Second Rear Angle

Tilting Edge Angle

Tool End

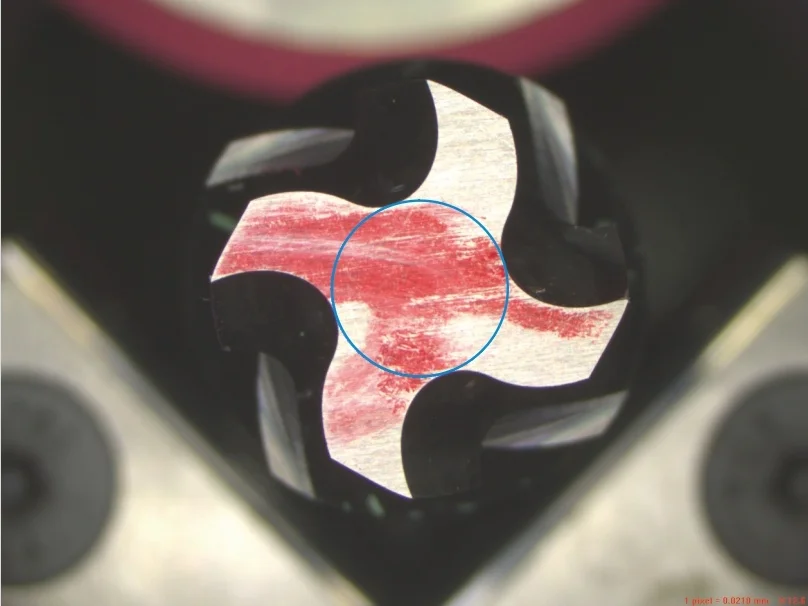

Tool End - Center Shaft

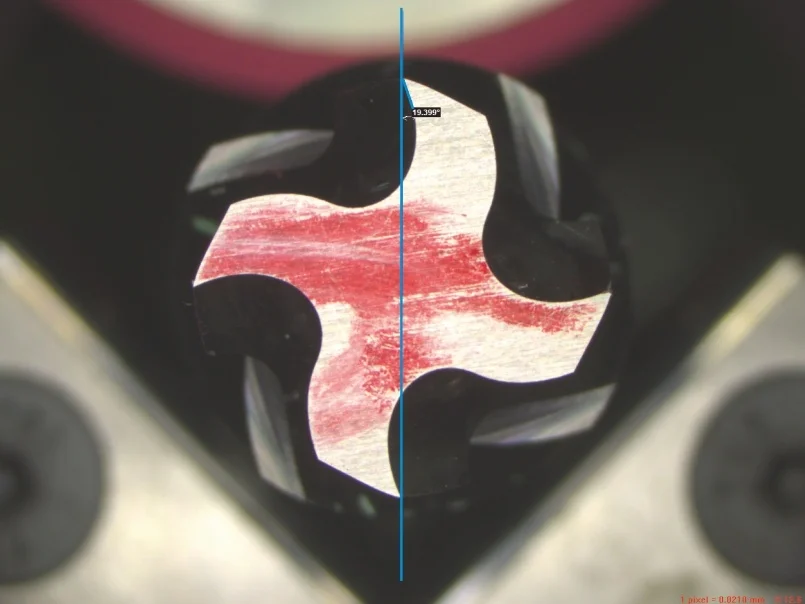

Tool End - Front Angle

First Rear Angle

Second Rear Angle
